Circuit Diagram

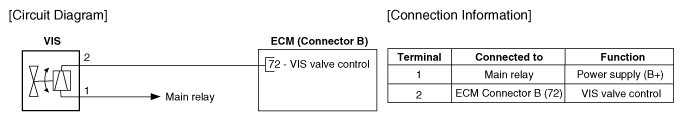

Fig 1: Variable Intake Manifold Solenoid Valve Circuit
G12146927Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Variable Intake Manifold Solenoid Valve Connector Terminals
G12146928Courtesy of KIA MOTORS AMERICA, INC.
