Description and Operation: Description

Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold. The VIS valve controls the vacuum modulator which activates a valve in the intake manifold. The ECM opens or closes this valve according to engine condition (Refer to below table).

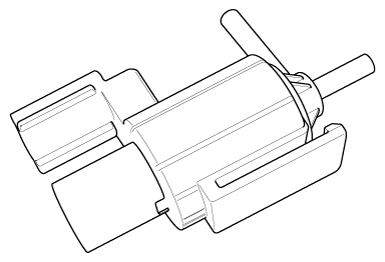

Fig 1: Variable Intake Manifold Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
