Circuit Diagram

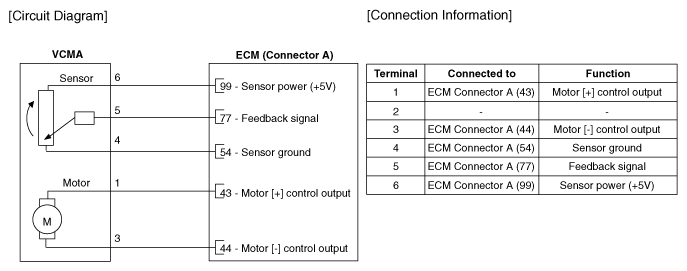

Fig 1: Variable Charge Motion Actuator Circuit
G12146932Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Variable Charge Motion Actuator Connector Terminals
G12146933Courtesy of KIA MOTORS AMERICA, INC.
