Circuit Diagram

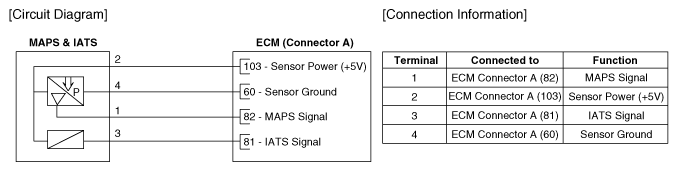

Fig 1: Manifold Absolute Pressure Sensor Circuit
G12146846Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

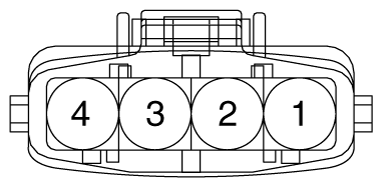

Fig 2: Manifold Absolute Pressure Sensor Connector Terminals
G12146847Courtesy of KIA MOTORS AMERICA, INC.
