Circuit Diagram

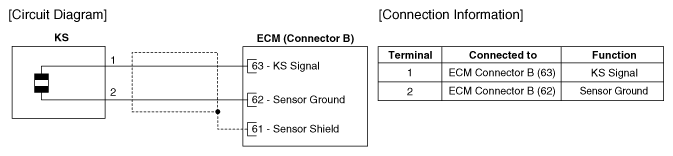

Fig 1: Knock Sensor Circuit

G12146872

Courtesy of KIA MOTORS AMERICA, INC.

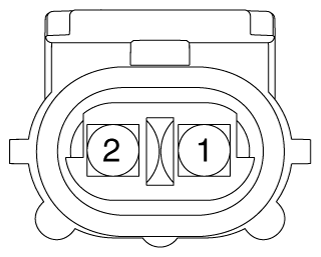

Harness Connector

Fig 2: Knock Sensor Connector Terminals

G12146873

Courtesy of KIA MOTORS AMERICA, INC.
