Circuit Diagram

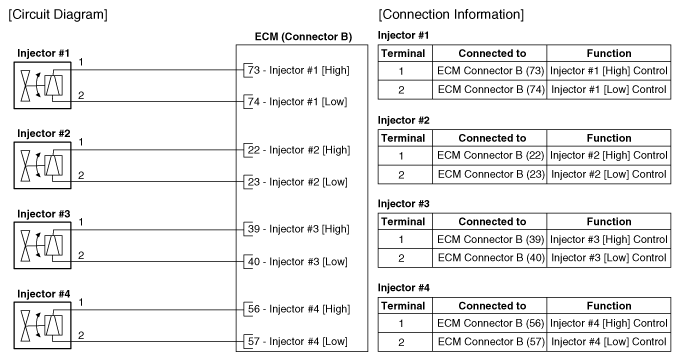

Fig 1: Injector Circuit

G12146903

Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Injector Connector Terminals

G12146904

Courtesy of KIA MOTORS AMERICA, INC.
