Fuel Tank Pressure Sensor (FTPS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

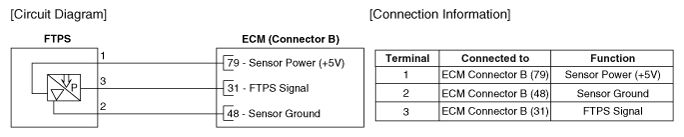

Fig 1: Fuel Tank Pressure Sensor Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Harness Connector

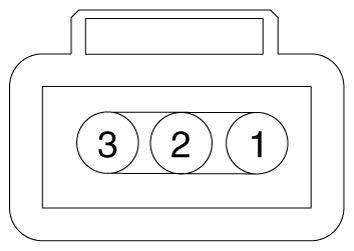

Fig 2: Fuel Tank Pressure Sensor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
