Components and Components Location: Components

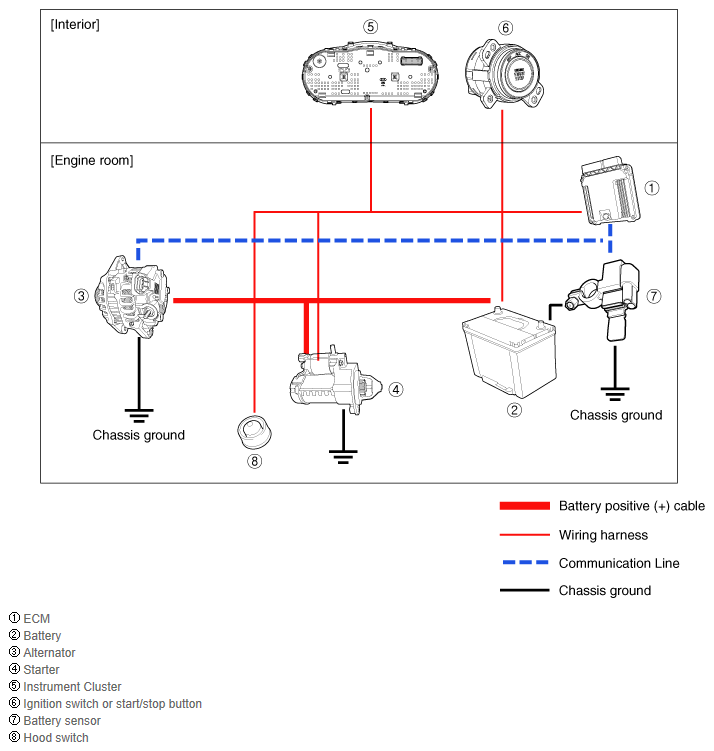

Fig 1: Charging System Communication Diagram

G12146497

Courtesy of KIA MOTORS AMERICA, INC.
