Components and Components Location: Components

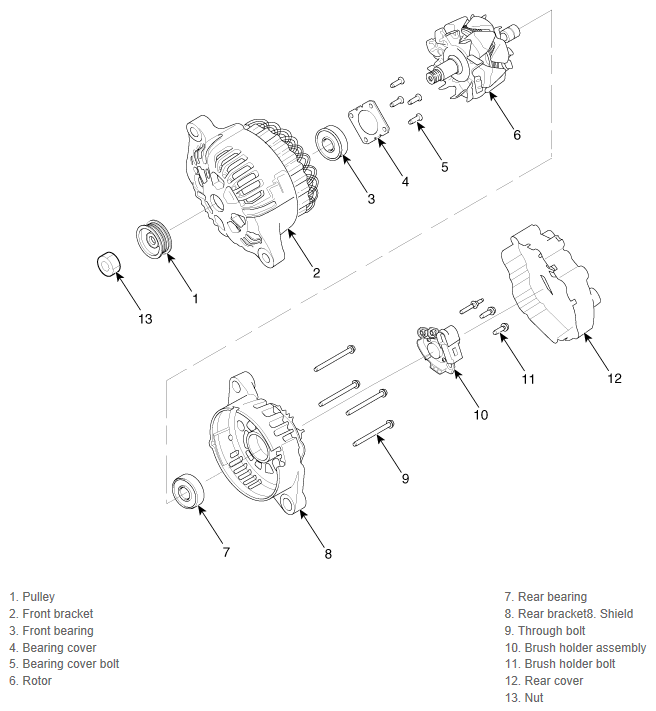

Fig 1: Exploded View Of Alternator Components

G12146526

Courtesy of KIA MOTORS AMERICA, INC.
