Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

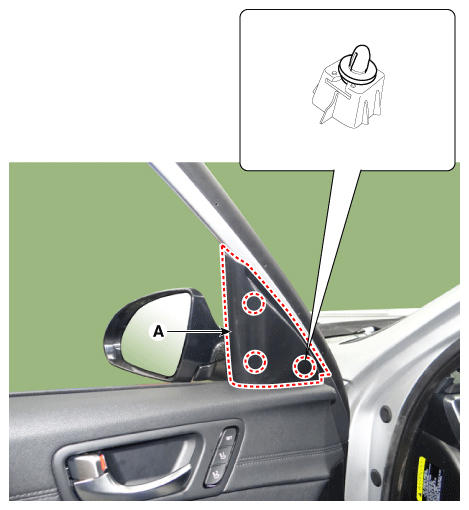

After loosening the mounting clips, then remove the front door quadrant inner cover (A).

Fig 1: Locating Front Door Quadrant Inner Cover With Mounting Clips
Courtesy of KIA MOTORS AMERICA, INC.

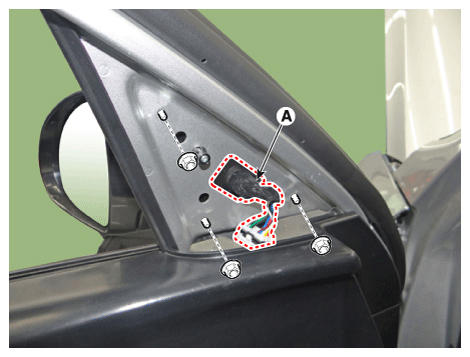

Loosen the mounting nuts and disconnect the outside rear view mirror connector (A).

Fig 2: Locating Outside Rear View Mirror Connector With Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

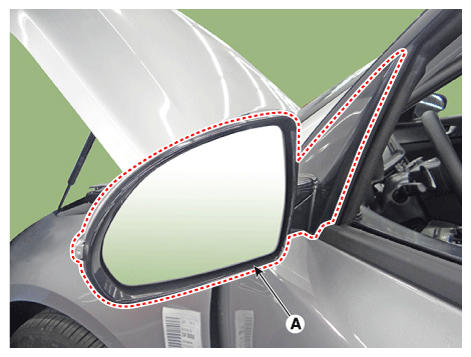

Remove the outside rear view mirror (A).

Fig 3: Locating Outside Rear View Mirror
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
