Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

Remove the inside rear view mirror cover (A).

Fig 1: Locating Inside Rear View Mirror Cover
Courtesy of KIA MOTORS AMERICA, INC.

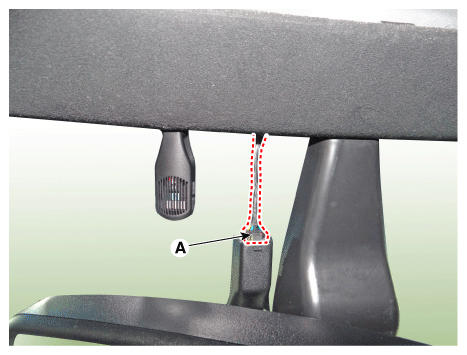

Disconnect the inside rear view mirror connector (A).

Fig 2: Locating Inside Rear View Mirror Connector
Courtesy of KIA MOTORS AMERICA, INC.

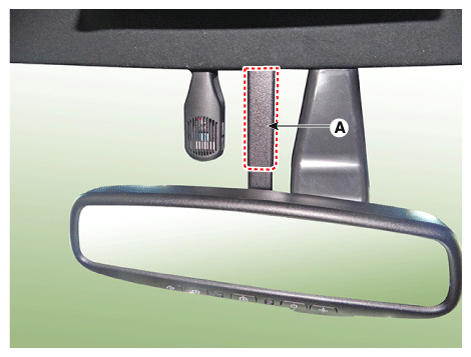

Push the PCM mirror base down to remove the PCM mirror assembly (A).

Fig 3: Locating PCM Mirror Assembly With Screw
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Be careful not to damage windshield glass.
