Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the memory power seat switch connector (A).

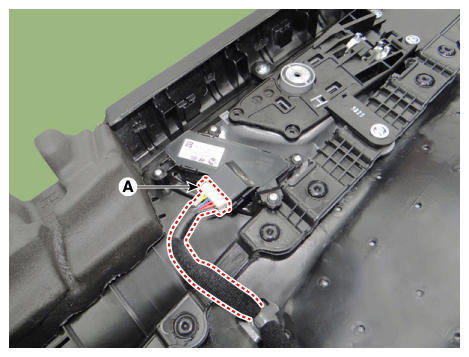

    Fig 1: Removing Memory Power Seat Switch Connector
    G12143231Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the memory power seat switch (A) after loosening the mounting screws.

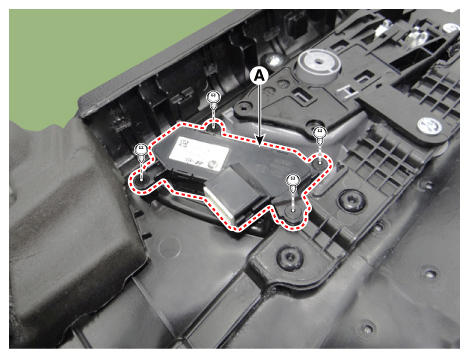

Fig 2: Removing Memory Power Seat Switch Mounting Screws
G12143232Courtesy of KIA MOTORS AMERICA, INC.
