Monitor KDS/GDS Data

■ Current Data Inspection

1. Ignition "OFF".
2. Connect KDS/GDS to Data Link Connector (DLC).
3. Ignition "ON" & Engine "ON".
4. Monitor following parameters in "Current Data  " with KDS/GDS.

   Specification  : Refer to Fig 1 below

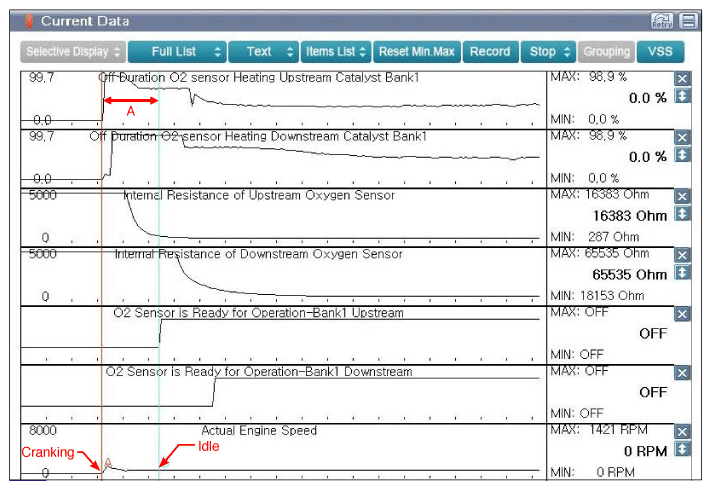

   Fig 1: Scantool Display - Upstream O2 Sensor Reaches Operative Temperature Approximately Within 8 SEC After Cranking

   Courtesy of KIA MOTORS AMERICA, INC.

   *Time can be vary depending on start engine Temp.

5. Is the parameter displayed within specification?

   YES

   • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
   • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

   NO

   • Go to "Wiring Inspection " procedure.
