Component Location

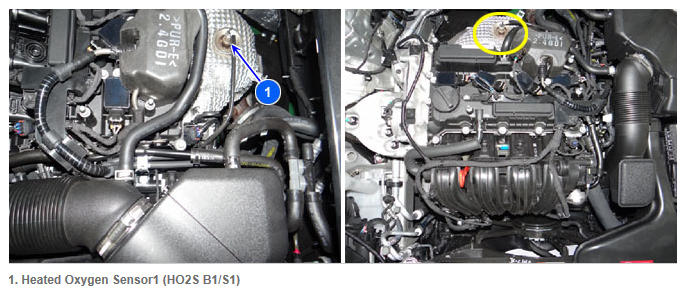

Fig 1: Locating Heated Oxygen Sensor 1 (HO2S B1/S1)
G12132381Courtesy of KIA MOTORS AMERICA, INC.
