Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

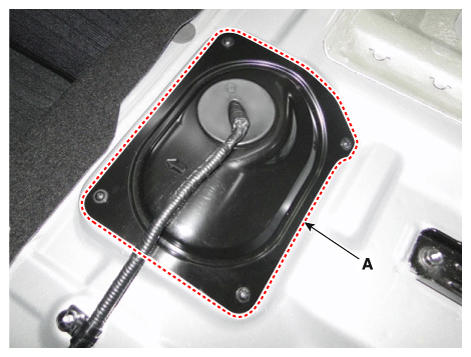

  3. Remove the fuel pump service cover (A).
    Fig 1: Removing Fuel Pump Service Cover
    G12146994Courtesy of KIA MOTORS AMERICA, INC.

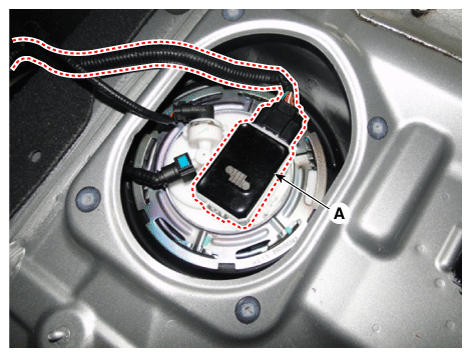

  4. Disconnect the fuel pump control module connector (A).
  5. Remove the fuel pressure control module (A) after removing the screws.
    Fig 2: Disconnecting Fuel Pump Control Module Connector
    G12146995Courtesy of KIA MOTORS AMERICA, INC.
