Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Tighten the HECU mounting bolts and nuts to the specified torque.
  3. After installation, bleed the brake system.

    (Refer to Brake System - "BRAKE SYSTEM BLEEDING ")

  4. Connect the KDS/GDS to the data link connector located underneath the dash panel.
  5. Select and operate according to the instructions on the KDS/GDS screen.

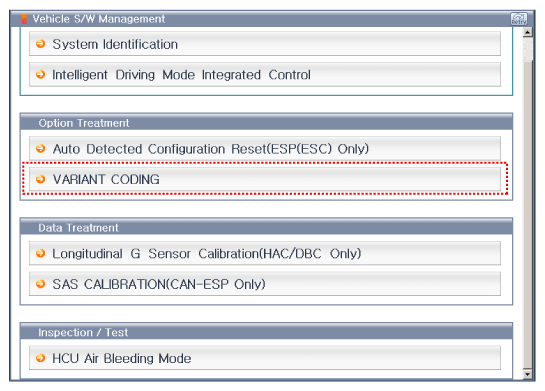

Fig 1: Screen Display - Vehicle S/W Management
G12142219Courtesy of KIA MOTORS AMERICA, INC.

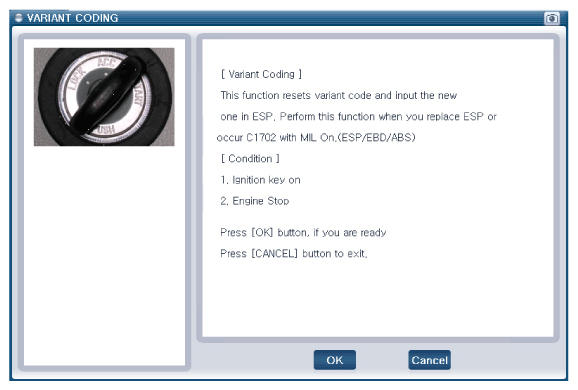

Fig 2: Scantool Display - Variant Coding
G12142220Courtesy of KIA MOTORS AMERICA, INC.

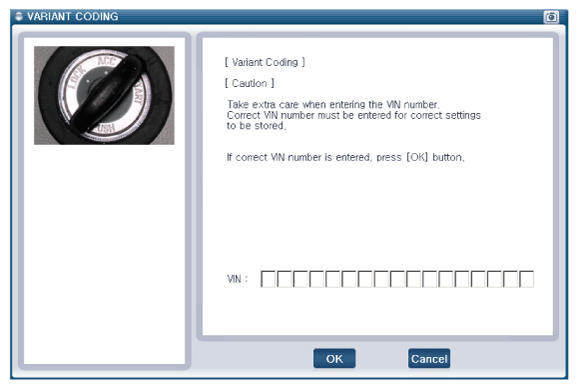

Fig 3: Scantool Display - Variant Coding (VIN)
G12142221Courtesy of KIA MOTORS AMERICA, INC.
