Repair Procedures: Removal

  1. Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).

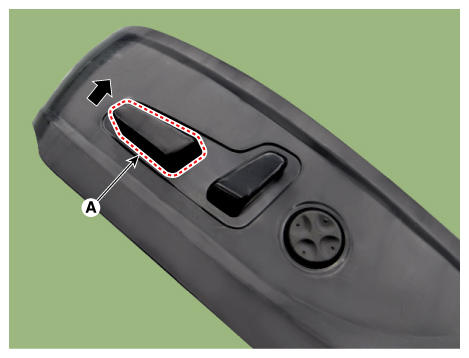

    Fig 1: Pushing Front Seat Height Adjusting Switch
    G12143227Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  4. Loosen the IMS unit mounting screws.

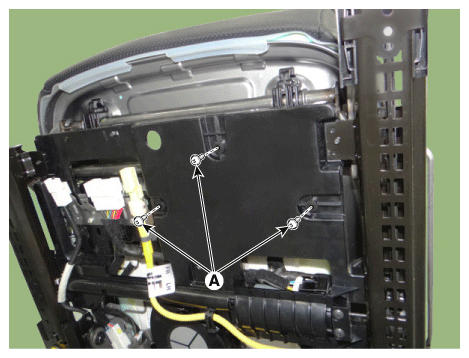

    Fig 2: Loosening IMS Unit Mounting Screws
    G12143228Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the IMS module connectors (B) and then remove the IMS unit (A).

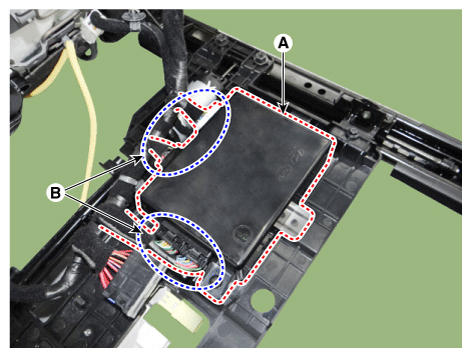

Fig 3: Disconnecting IMS Module Connectors
G12143229Courtesy of KIA MOTORS AMERICA, INC.
