Repair Procedures: Replacement

Disconnect the battery negative cable.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

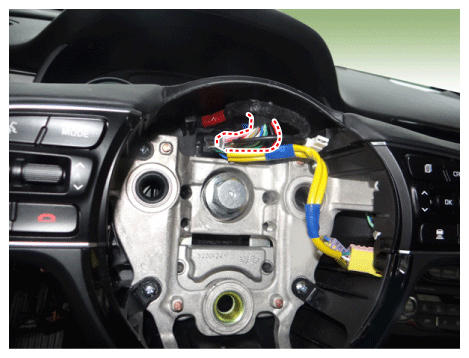

Disconnect the connector.

Fig 1: Disconnecting Connector
Courtesy of KIA MOTORS AMERICA, INC.

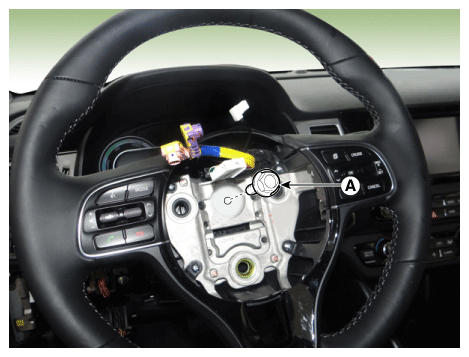

Loosen the bolt (A) and then remove the steering wheel.
Tightening Torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb.ft)

Fig 2: Removing Steering Wheel Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.

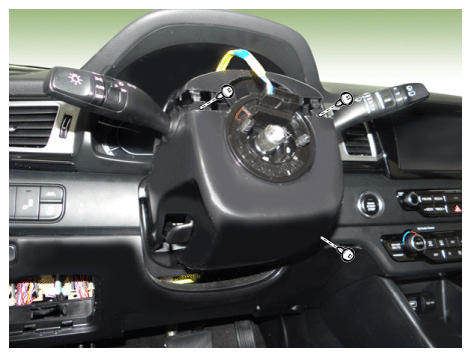

Loosen the screw and then remove the lower shroud.

Fig 3: Removing Lower Shroud Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

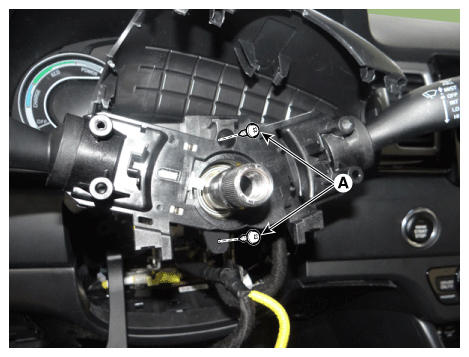

Loosen the screw (A) and disconnect the connector (B) to remove the multifunction switch.

Fig 4: Removing Multifunction Switch Screw
Courtesy of KIA MOTORS AMERICA, INC.

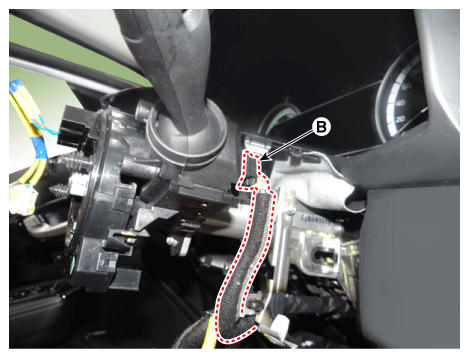

Fig 5: Disconnecting Connector To Multifunction Switch
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

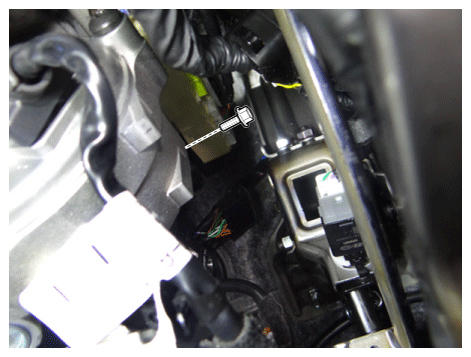

Remove the universal joint bolt (A).
Tightening Torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

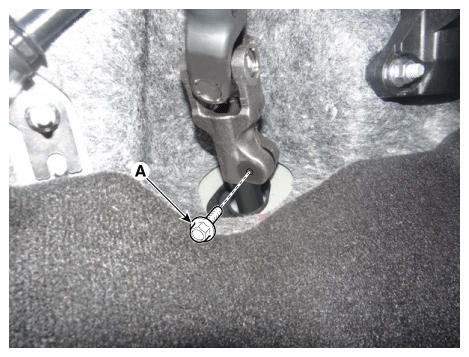

Fig 6: Removing Universal Joint Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Keep the neutral-range to prevent damaging the clock spring inner cable when steering the wheel.
- Do not reuse the bolt.

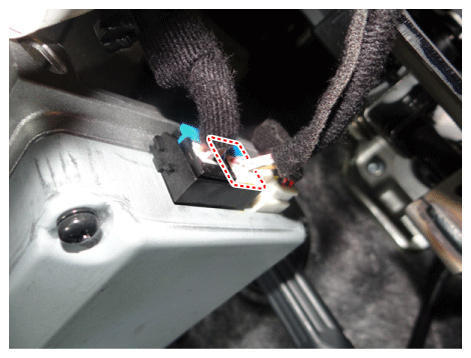

Disconnect the MDPS connector.

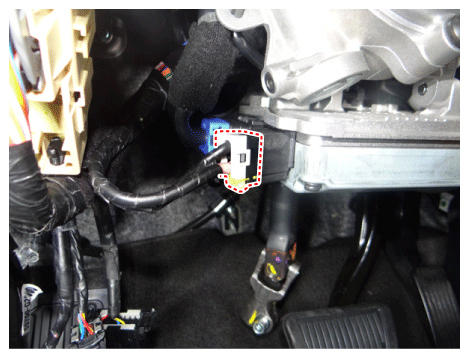

Fig 7: Disconnecting MDPS Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Disconnecting MDPS Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

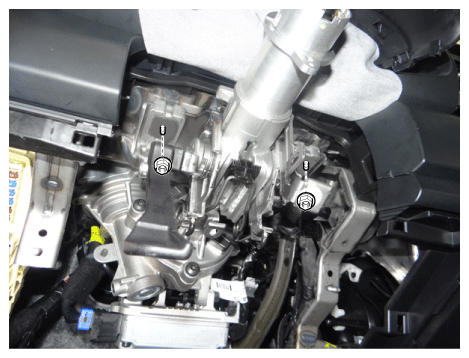

Loosen the steering column nuts.
Tightening Torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Fig 9: Loosening Steering Column Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the steering column bolt and then remove the steering column.
Tightening Torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

Fig 10: Removing Steering Column Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
