Schematic Diagram: Notes

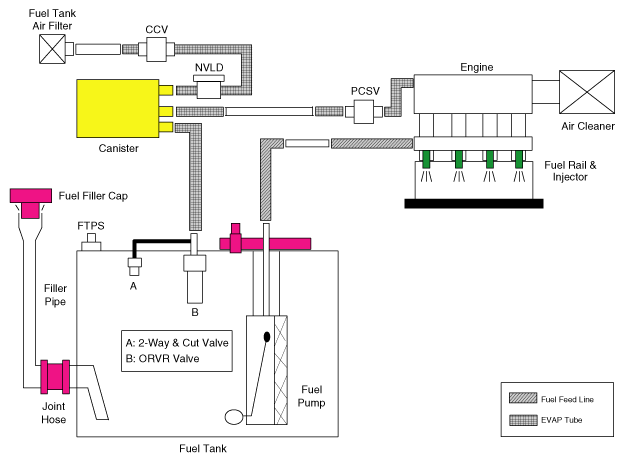

Fig 1: Evaporative Emission Control System Schematic Diagram

G12329008

Courtesy of KIA MOTORS AMERICA, INC.
