Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the rear door module.

   (Refer to Rear Door - "REAR DOOR MODULE ")

2. Remove the rear back armrest (A) after loosening the cap & bolt.

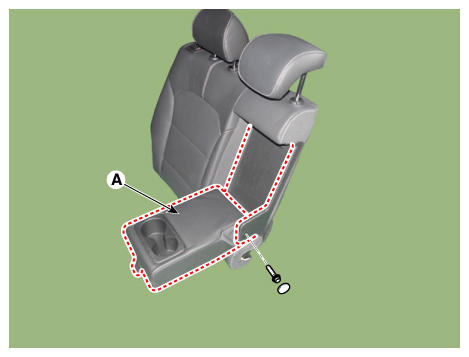

   Fig 1: Removing Rear Back Armrest Cap & Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the rear back armrest board (A) after loosening the screws.

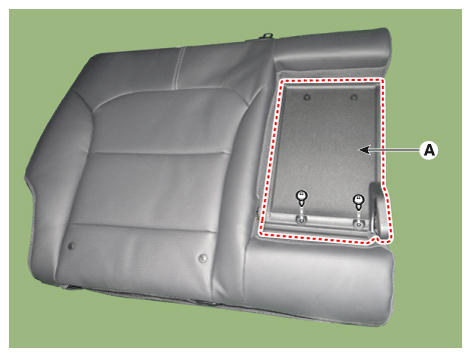

   Fig 2: Removing Rear Back Armrest Board Screws

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

• Make sure that the connectors are plugged in properly.
• Replace any damaged clips.
