[Rear Seat Back Assembly]

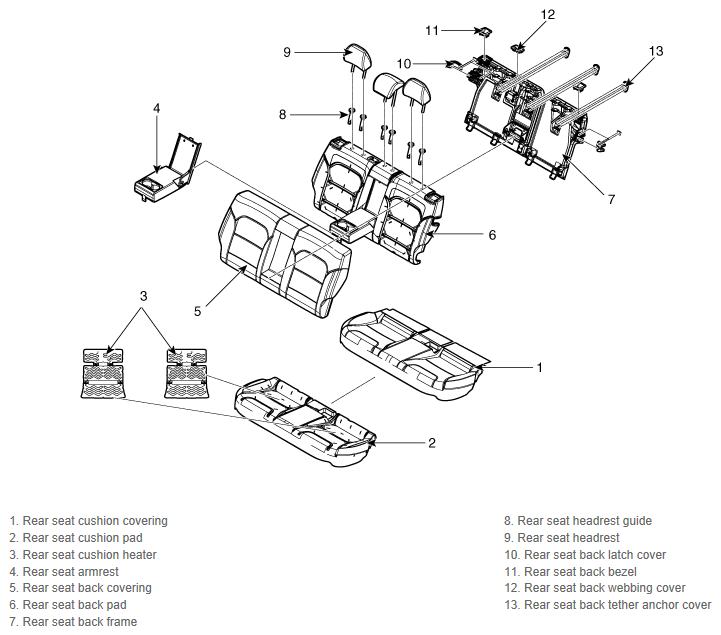

Fig 1: Locating Rear Seat Back Assembly Components

G12331855

Courtesy of KIA MOTORS AMERICA, INC.
