Description And Operation: Description

• The Hybrid Power Control Unit (HPCU) is composed of various components. It is the core device among the Power Electronics devices and acts as the brain.
• It comprises a Hybrid Control Unit (HCU), an inverter [Motor Control Unit (MCU), a Generator Control Unit (GCU)] and a Low-voltage DC-DC Converter (LDC).

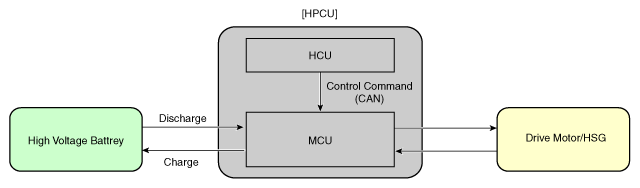

Fig 1: Locating Hybrid Power Control Unit Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
