Rear Power Window Motor

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Refer to Body - "REAR DOOR TRIM ")

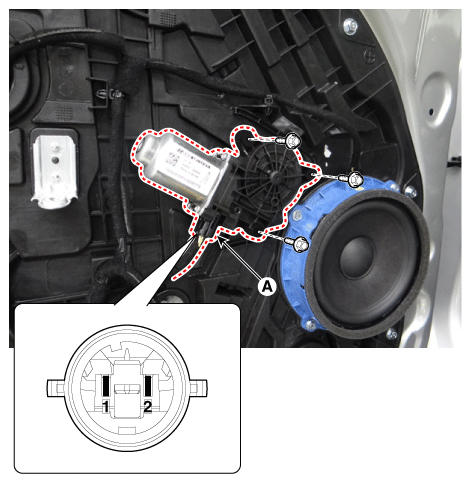

3. Disconnect the motor connector (A) from the motor.
   Fig 1: Locating Motor Connector From Motor

   Courtesy of KIA MOTORS AMERICA, INC.
4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly.

If the operation is abnormal, replace the motor.

Fig 2: Rear Power Window Motor Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
