Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

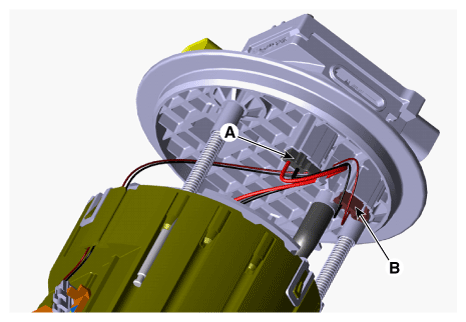

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

Fig 1: Disconnecting Fuel Pump Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

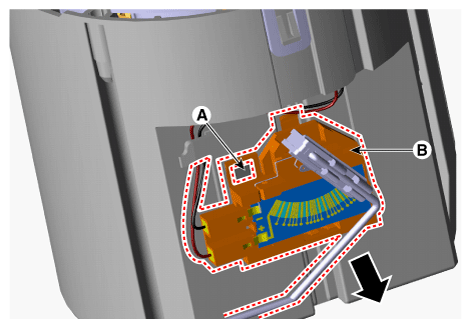

Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).

Fig 2: Removing Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.

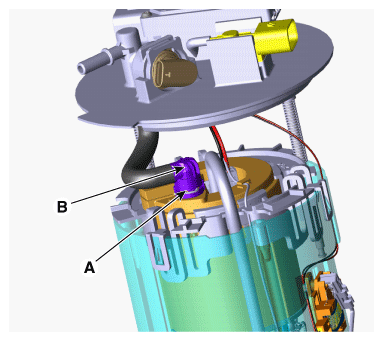

Remove the fixing clip (A), and then disconnect the feed tube (B).

Fig 3: Disconnecting Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.

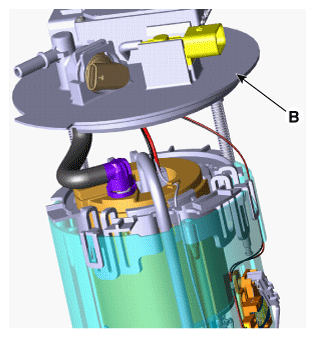

Remove the head assembly (B) after releasing the cushion fixing clip (A).

Fig 4: Removing Head Assembly (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Removing Head Assembly (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

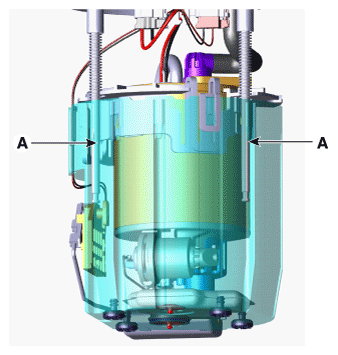

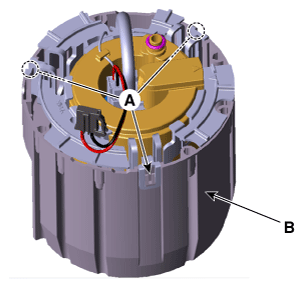

Remove the reservoir-cup (B) after releasing the fixing hook (A).

Fig 6: Removing Reservoir-Cup And Fixing Hook
Courtesy of KIA MOTORS AMERICA, INC.

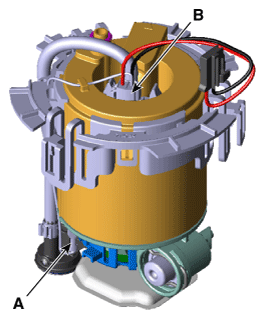

Disconnect the ground line (A).
Disconnect the fuel pump motor connector (B).

Fig 7: Disconnecting Ground Line
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (B) after releasing the fixing hook (A).

Fig 8: Removing Fuel Pressure Regulator
Courtesy of KIA MOTORS AMERICA, INC.

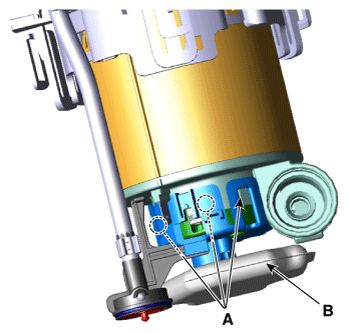

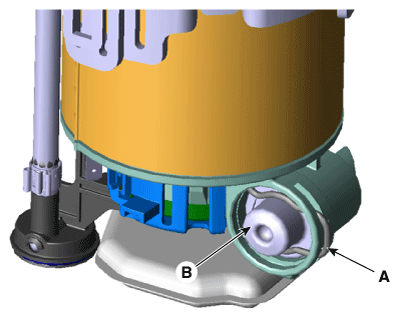

Remove the pre-filter (B) after releasing the fixing hooks (A).

Fig 9: Removing Pre-Filter And Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

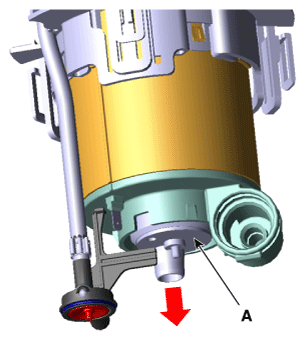

Remove the fuel pump motor (A) from the fuel filter by pulling it downward.

Fig 10: Removing Fuel Pump Motor From Fuel Filter
Courtesy of KIA MOTORS AMERICA, INC.

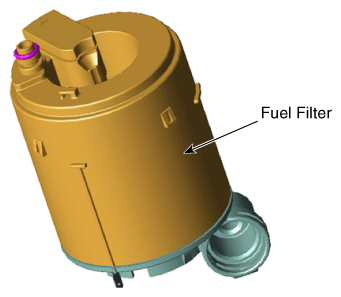

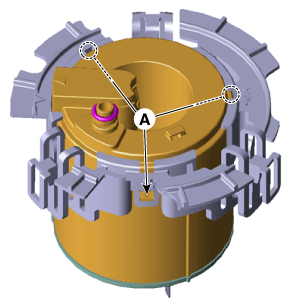

Remove the fuel filter after releasing the fixing hooks (A).

Fig 11: Removing Fuel Filter (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Removing Fuel Filter (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
