Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

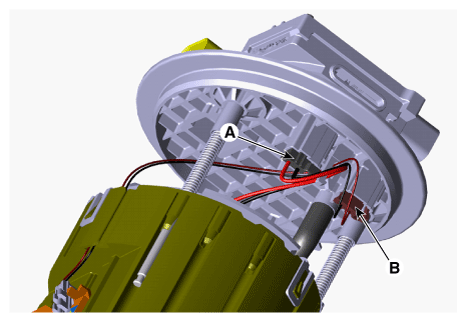

Fig 1: Disconnecting Fuel Pump Motor Connector And Fuel Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).

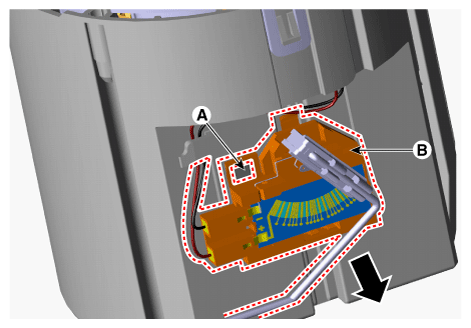

Fig 2: Removing Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fixing clip (A), and then disconnect the feed tube (B).

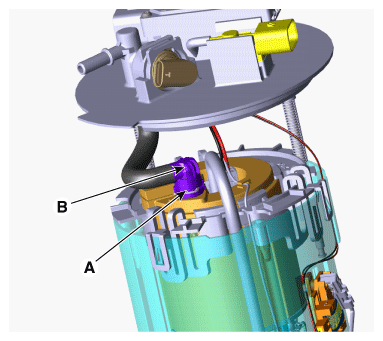

Fig 3: Disconnecting Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.
Remove the head assembly (B) after releasing the cushion fixing clip (A).

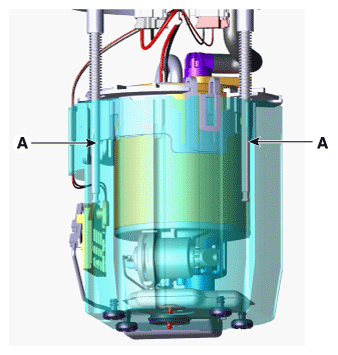

Fig 4: Removing Head Assembly (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

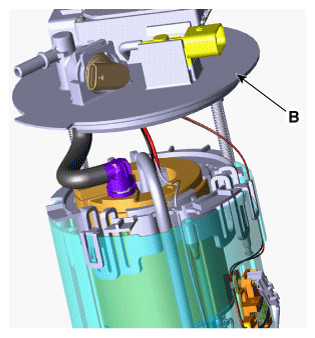

Fig 5: Removing Head Assembly (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reservoir-cup (B) after releasing the fixing hook (A).

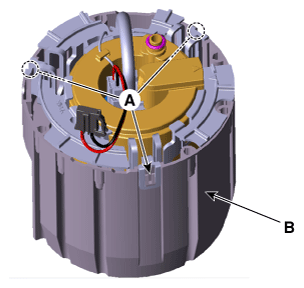

Fig 6: Removing Reservoir-Cup And Fixing Hook
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ground line (A).
Disconnect the fuel pump motor connector (B).

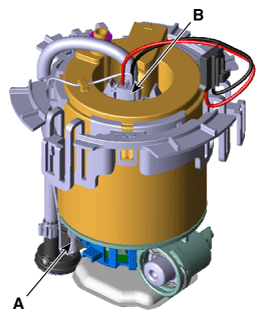

Fig 7: Disconnecting Ground Line
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (B) after releasing the fixing hook (A).

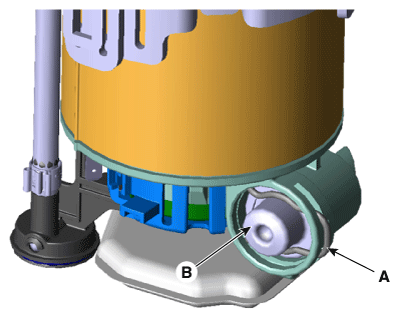

Fig 8: Removing Fuel Pressure Regulator
Courtesy of KIA MOTORS AMERICA, INC.
