Repair Procedures: Inspection

Using a gasket scraper, remove all the gasket material from the top surface of the cylinder block.

Using a soft brush and solvent, thoroughly clean the cylinder block.

Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head gasket for warpage.

Flatness Of Cylinder Block Gasket Surface  :

Standard:

Less than 0.05 mm (0.0020 in.) for total area

Less than 0.02 mm (0.0008 in.) for a section of 100 mm (3.9370 in.) X 100 mm (3.9370 in.)

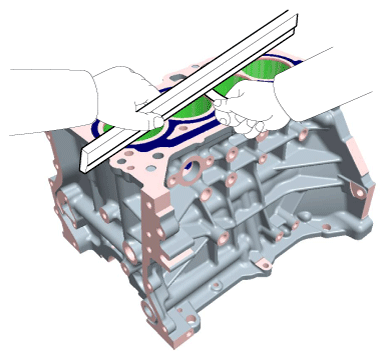

Fig 1: Inspecting Top Surface Of Cylinder Block For Flatness

Courtesy of KIA MOTORS AMERICA, INC.

Visually check the cylinder for vertical scratches.

If deep scratches are present, replace the cylinder block.

Using a cylinder bore gauge, measure the cylinder bore diameter at position in the thrust and axial direction.

Cylinder Bore Diameter  :

72.00 - 72.03 mm (2.8346 - 2.8358 in.)

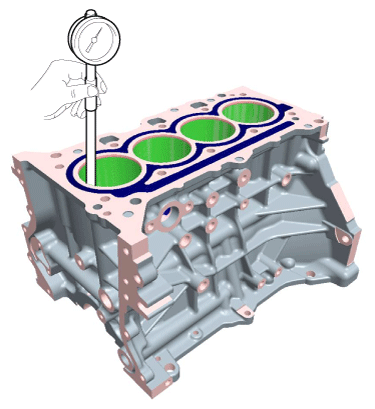

Fig 2: Inspecting Cylinder Bore Diameter

Courtesy of KIA MOTORS AMERICA, INC.

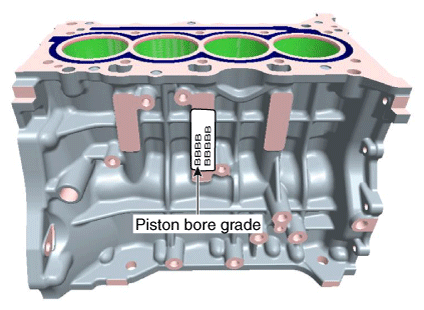

Fig 3: Checking Cylinder Bore Size Code On Cylinder Block Side Surface

Courtesy of KIA MOTORS AMERICA, INC.

Cylinder Bore Inner Diameter
