Repair Procedures: Replacement

1. Remove the center pillar upper trim.

   (Refer to Interior Trim - "CENTER PILLAR TRIM ")

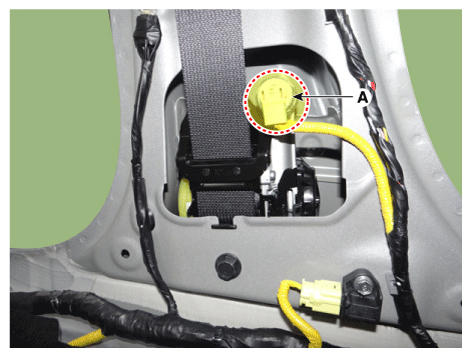

2. Disconnect the connector (A).
   Fig 1: Locating Connector

   Courtesy of KIA MOTORS AMERICA, INC.

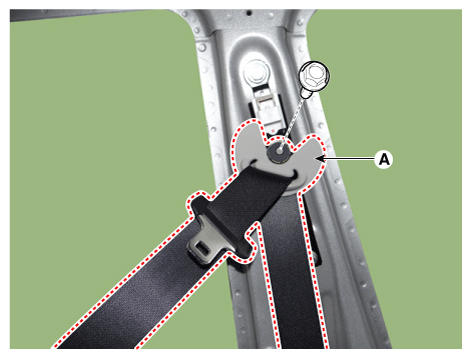

3. Remove the front seat belt upper anchor (A) after loosening the mounting bolt.

   Tightening Torque:

   39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

   Fig 2: Removing Front Seat Belt Upper Anchor Mounting Bolt

   Courtesy of KIA MOTORS AMERICA, INC.

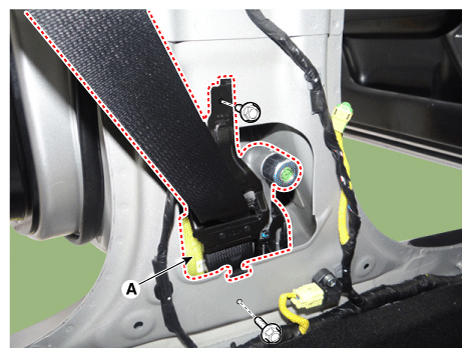

4. Remove the front seat belt retractor (A) after loosening the bolts.

   Tightening Torque:

   Lower: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

   Upper: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

   Fig 3: Removing Front Seat Belt Retractor Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.

Information

• Make sure that the connector is plugged in properly.
• Replace any damaged clips.
