Circuit Diagram: Notes

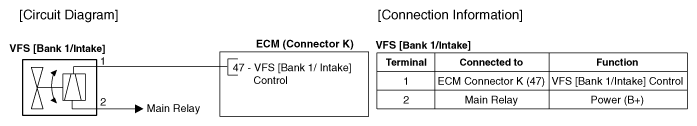

Fig 1: Variable Force Solenoid System Circuit

G12335866

Courtesy of KIA MOTORS AMERICA, INC.
