Circuit Diagram: Notes

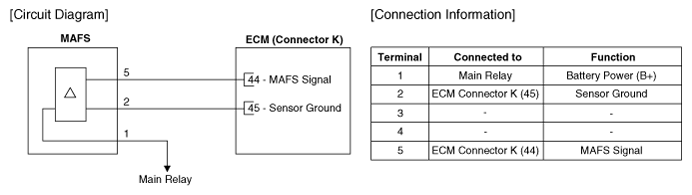

Fig 1: Mass Air Flow Sensor System Circuit

G12335780

Courtesy of KIA MOTORS AMERICA, INC.
