Repair Procedures: Installation

Apply engine oil to the oil cooler packing surface (A).

Fig 1: Applying Engine Oil To Oil Cooler Packing Surface
Courtesy of KIA MOTORS AMERICA, INC.

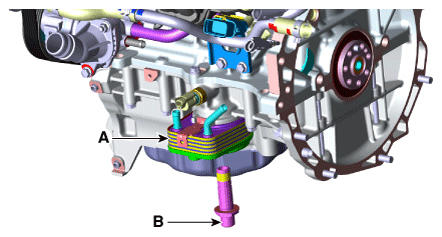

Install the oil cooler (A) with a fixing bolt (B).
Tightening Torque :

50.1 - 55.9 N.m (5.1 - 5.7 kgf.m, 36.9 - 41.2 lb.ft)

Fig 2: Installing Oil Cooler With Fixing Bolt
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Fix position of oil cooler stopper where oil cooler resists on ladder frame stopper.

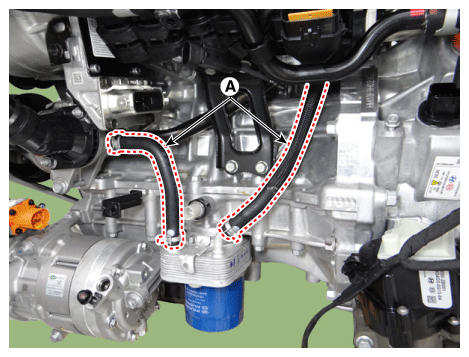

Connect the coolant hose (A).

Fig 3: Connecting Coolant Hose
Courtesy of KIA MOTORS AMERICA, INC.
Fill the coolant.
(Refer to Cooling System - "COOLANT ")
Install the oil filter and then fill the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Install the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
