Circuit Diagram

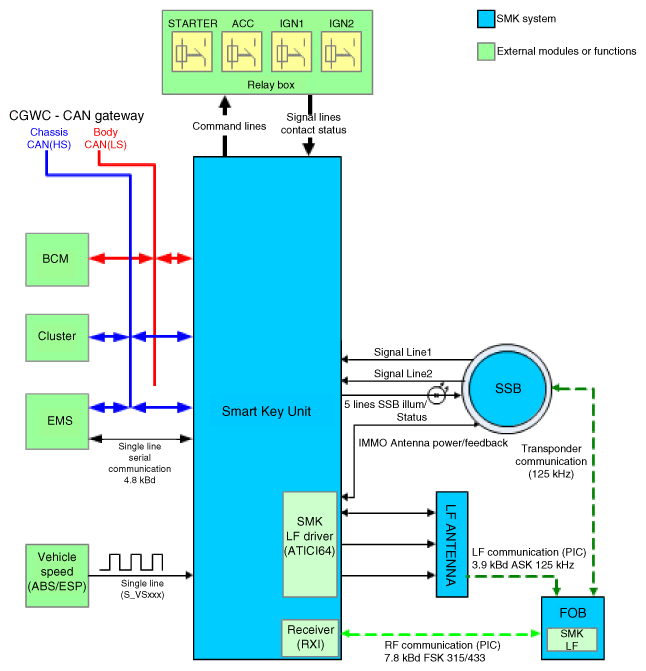

Fig 1: Button Engine Start System Circuit

G12334528

Courtesy of KIA MOTORS AMERICA, INC.
