Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Integrated Memory System (IMS)
>>
Memory Power Seat Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

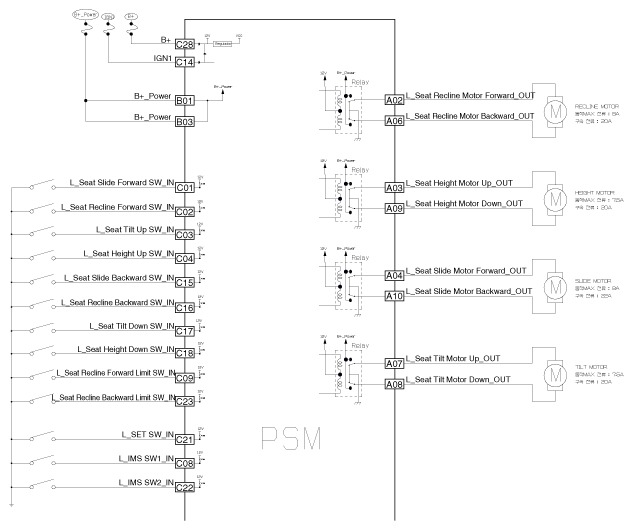

Fig 1: Memory Power Seat Unit System Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

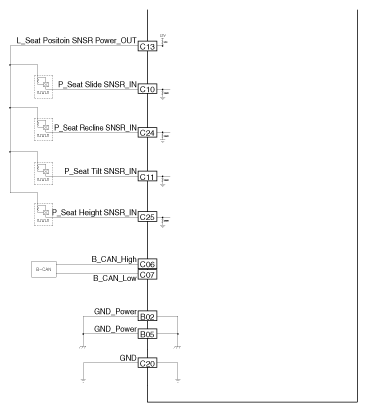

Fig 2: Memory Power Seat Unit System Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
