Repair Procedures: Removal

  1. Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).

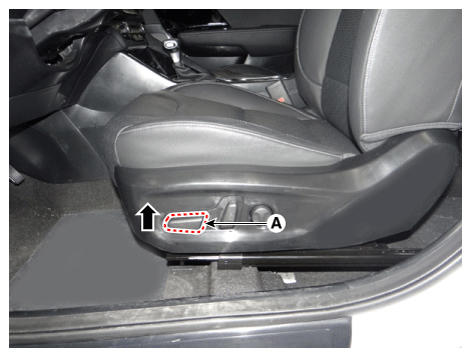

    Fig 1: Locating Front Seat Height Adjusting Switch
    G12334766Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  4. Disconnect the IMS unit connectors (A).
    Fig 2: Locating IMS Unit Connectors (1 Of 2)
    G12334767Courtesy of KIA MOTORS AMERICA, INC.

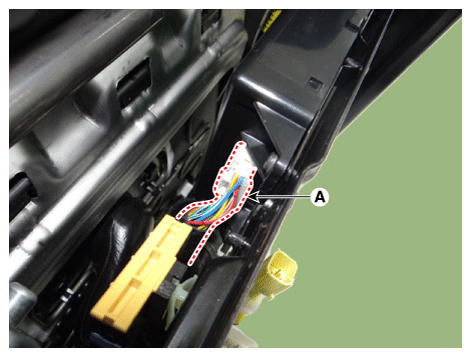

    Fig 3: Locating IMS Unit Connectors (2 Of 2)
    G12334768Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the IMS unit (A) after loosening the mounting screws.

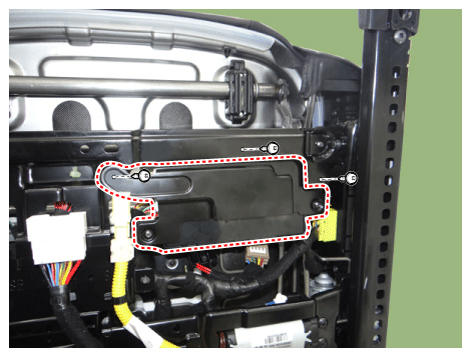

Fig 4: Removing IMS Unit Mounting Screws
G12334769Courtesy of KIA MOTORS AMERICA, INC.

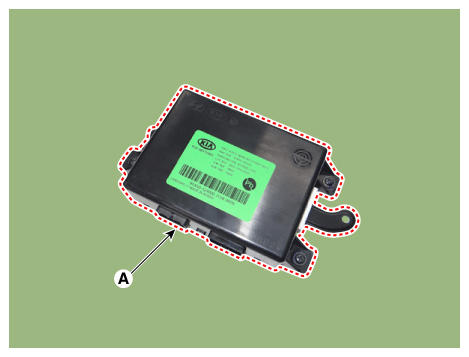

Fig 5: Locating IMS Unit
G12334770Courtesy of KIA MOTORS AMERICA, INC.
