Home >> Kia >> 2017 >> Niro FE >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> Memory Power Seat Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the memory power seat switch (A) after loosening the mounting screws.

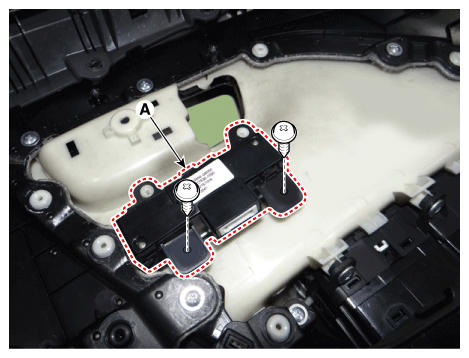

Fig 1: Removing Memory Power Seat Switch Mounting Screws
G12334772Courtesy of KIA MOTORS AMERICA, INC.
