Repair Procedures: Inspection

  1. Remove the memory power seat connector.

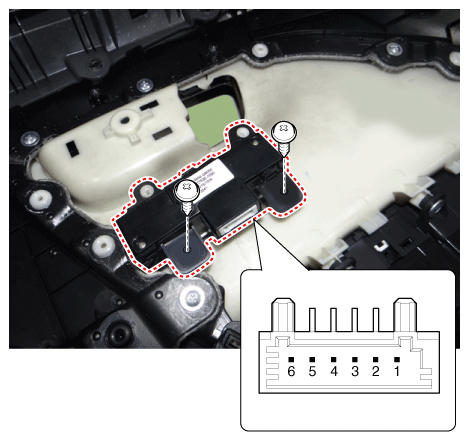

    Fig 1: Locating Memory Power Seat Connector
    G12334773Courtesy of KIA MOTORS AMERICA, INC.
  2. When each switch is pressed, check the electricity flow between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.

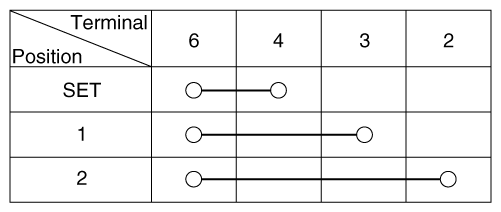

Fig 2: Memory Power Seat Switch Terminal Continuity Chart
G12334774Courtesy of KIA MOTORS AMERICA, INC.
