Home >> Kia >> 2017 >> Niro FE >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> Memory Power Seat Switch >> Components And Components Location >> Components

Components And Components Location: Components

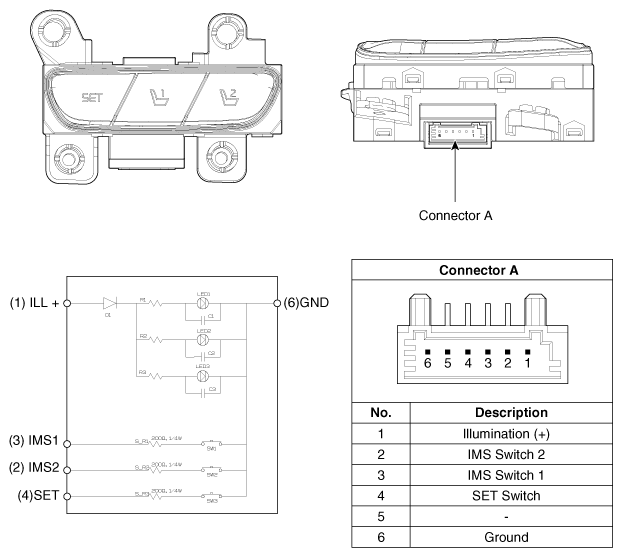

Fig 1: Locating Memory Power Seat Switch Connector

G12334771

Courtesy of KIA MOTORS AMERICA, INC.
