Decision On The Operation Priority

  1. The motor operation shall be delayed for 100±10 milliseconds to prevent the overlapping of inrush circuit during motor start. In this case, the priority is as follows.

    Slide > Back-Rest adjustment >Front height adjustment >Rear height adjustment Operation time chart

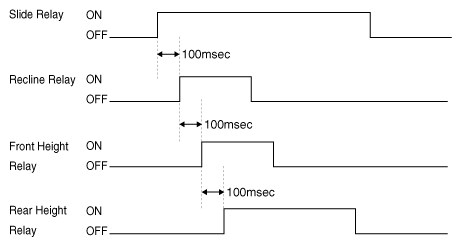

    Fig 1: Motor Operation Timing Chart
    G12334762Courtesy of KIA MOTORS AMERICA, INC.
