Schematic Diagrams

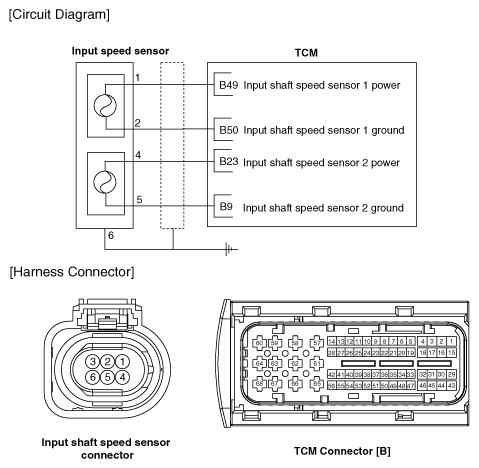

Fig 1: Input Shaft Speed Sensor Schematic Diagram

G12329178

Courtesy of KIA MOTORS AMERICA, INC.
