Schematic Diagrams

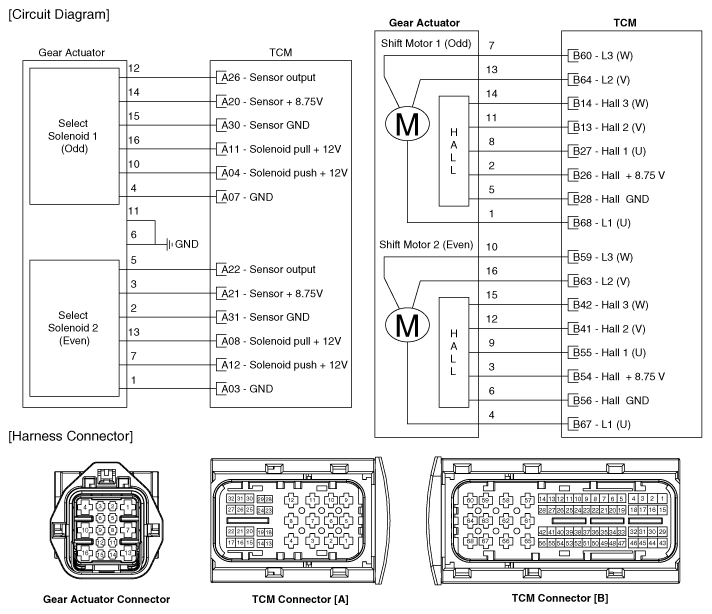

Fig 1: Gear Actuator Shift Motor Schematic Diagram

G12329167

Courtesy of KIA MOTORS AMERICA, INC.
