Circuit Diagram
Circuit Diagram

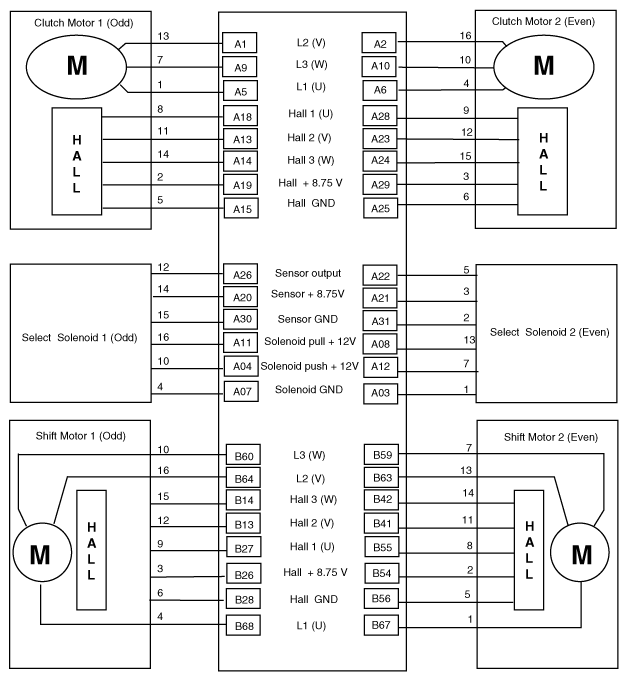

Fig 1: DCT Control Module System Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

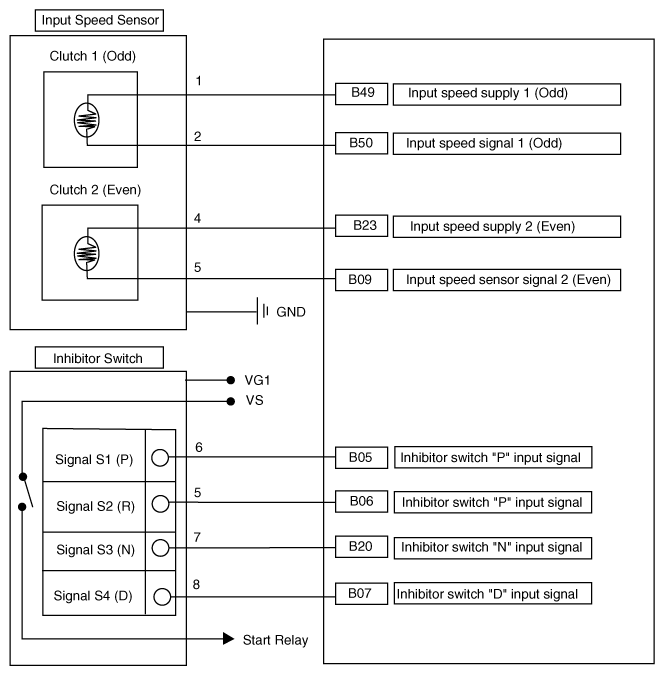

Fig 2: DCT Control Module System Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
