Inhibitor Switch: Troubleshooting

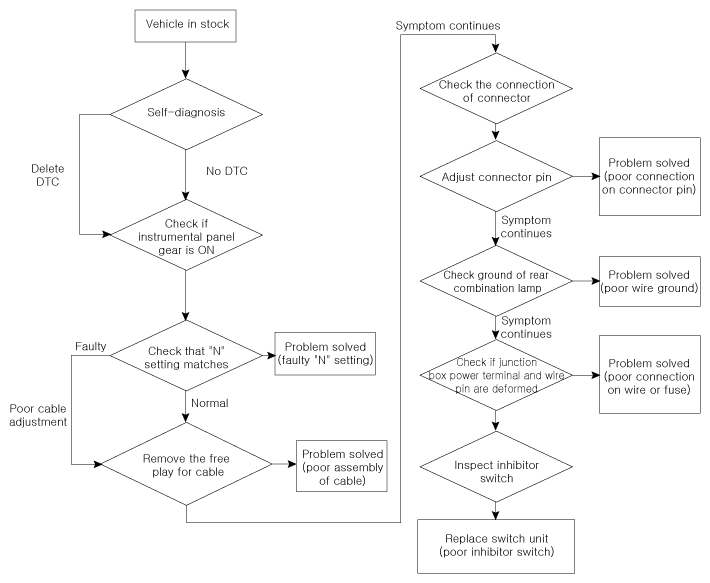

Fig 1: Inhibitor Switch Troubleshooting Flowchart

G12329184

Courtesy of KIA MOTORS AMERICA, INC.
