Schematic Diagrams

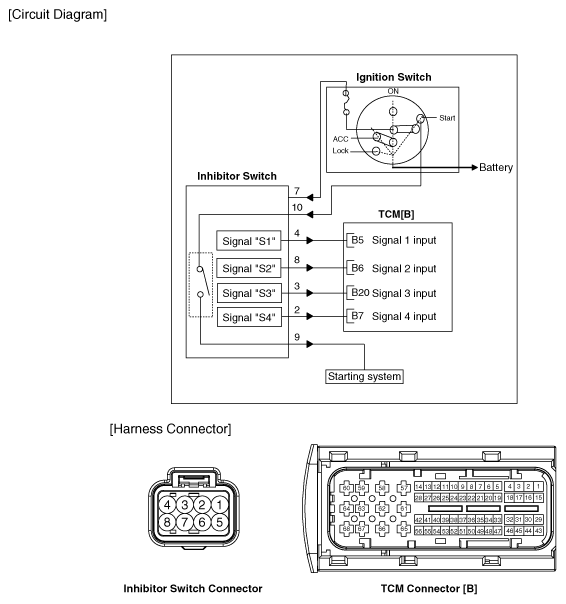

Fig 1: Inhibitor Switch Schematic Diagram

G12329183

Courtesy of KIA MOTORS AMERICA, INC.
