Home
>>
Kia
>>
2017
>>
Niro EX
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Dual Clutch Transmission Control System
>>
Gear Actuator Assembly
>>
Components And Components Location
>>
Component Location
Component Location

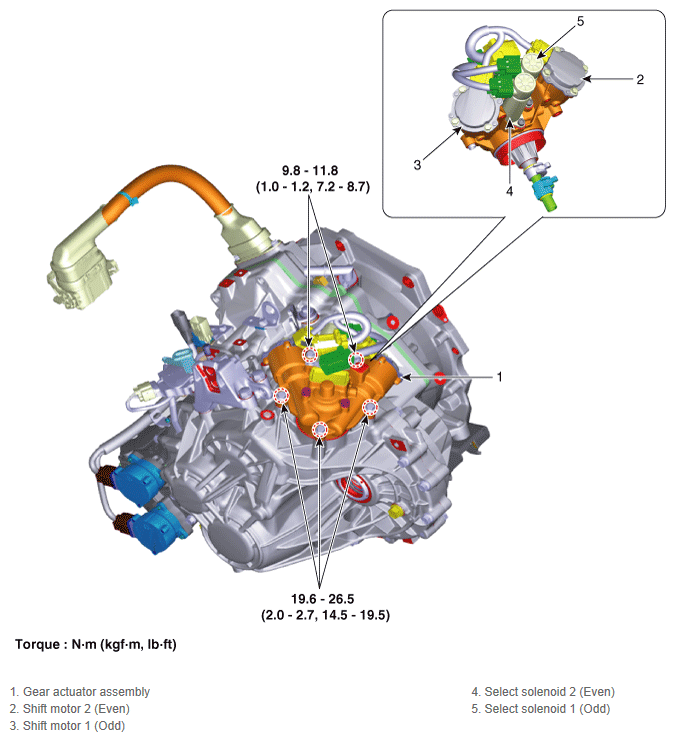

Fig 1: Locating Gear Actuator Assembly Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
