Components And Components Location: Components

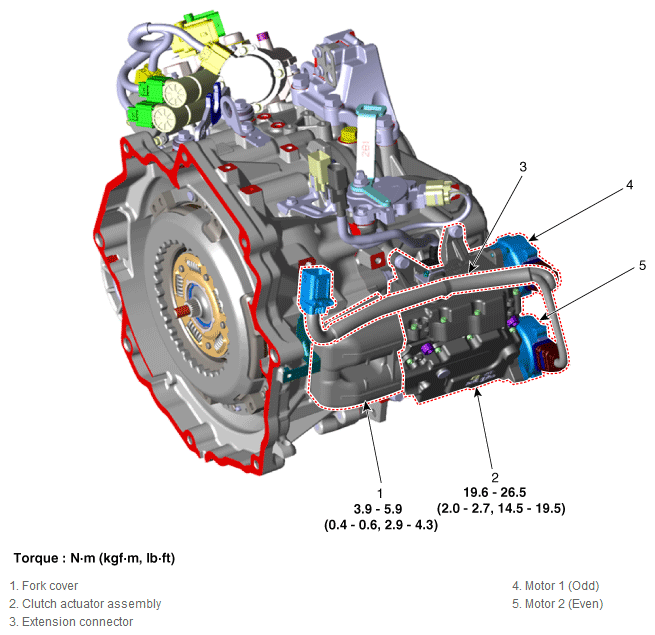

Fig 1: Clutch Actuator Assembly Components With Torque Specification

G12329128

Courtesy of KIA MOTORS AMERICA, INC.
