Repair Procedures: Removal

  1. Remove the hybrid drive motor & dual clutch transmission assembly from the vehicle.

    (Refer to DCT System - "DCT ")

  2. Remove the hybrid drive motor assembly from the DCT assembly.

    (Refer to Hybrid Motor System - "HYBRID DRIVE MOTOR ASSEMBLY ")

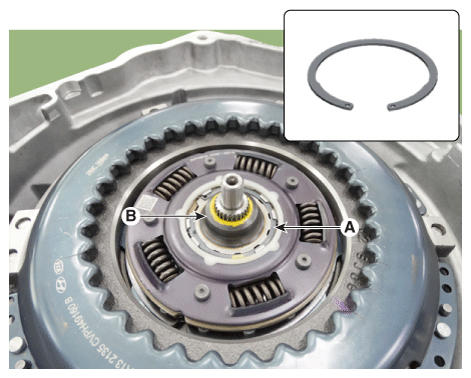

  3. Remove the spline hub (B) after removing a retaining ring (A).
    Fig 1: Removing Spline Hub And Retaining Ring
    G12329227Courtesy of KIA MOTORS AMERICA, INC.

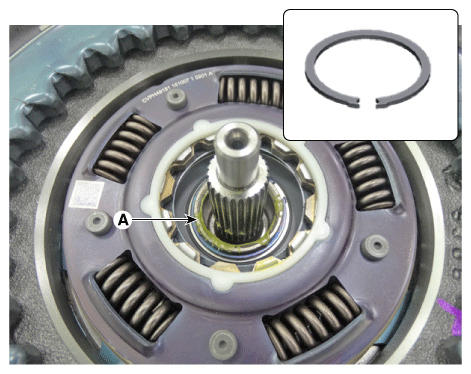

  4. Remove the snap ring (A).
    Fig 2: Removing Snap Ring
    G12329228Courtesy of KIA MOTORS AMERICA, INC.

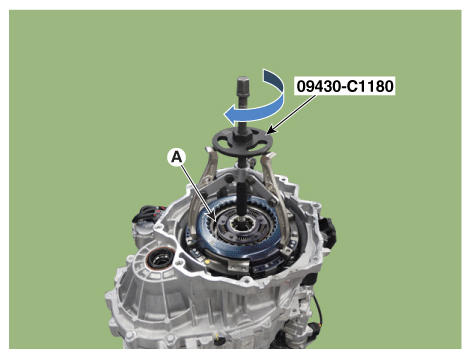

  5. Remove the dual clutch assembly (A) by using the special service tool (09430-C1180).
Fig 3: Removing Dual Clutch Assembly
G12329229Courtesy of KIA MOTORS AMERICA, INC.
