Repair Procedures: Replacement

1. Remove the front seat belt upper anchor.

   (Refer to Front Seat Belt - "FRONT SEAT BELT RETRACTOR ")

2. After loosening the mounting bolts, remove the height adjuster (A).

   Tightening Torque:

   39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

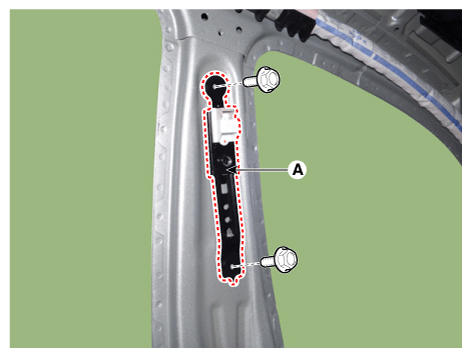

   Fig 1: Locating Height Adjuster

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install in the reverse order of removal.

Information

Replace any damaged clips.
