Hybrid Drive Motor

Inspect the Resolver Sensor Resistance.

Item	Pin	Specification	Remarks
Resistance (Resolver sensor)	1 - 5	11.7 Ω ± 10 %	At room temperature 68°F (20°C)
	2 - 6	34.5 Ω ± 10 %
	3 - 7	29.5 Ω ± 10 %

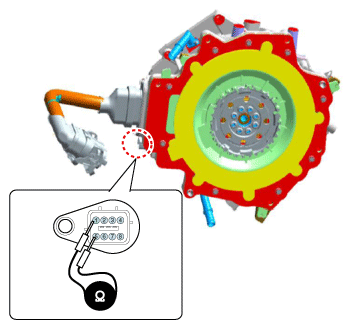

Fig 1: Inspecting Resolver Sensor Resistance

Courtesy of KIA MOTORS AMERICA, INC.

If the resolver sensor need to be replaced, hybrid drive motor assembly should be replaced. (Refer to Hybrid Motor Assembly - "HYBRID DRIVE MOTOR ASSEMBLY ")
