Removal And Installation

NOTE: Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.

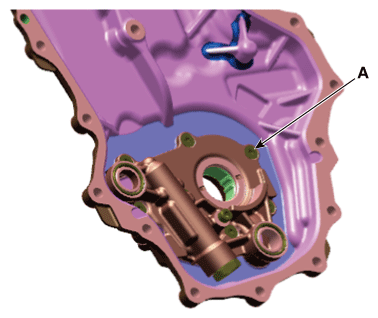

Fig 1: Locating Oil Pump From Timing Chain Cover
G12328962Courtesy of KIA MOTORS AMERICA, INC.
