Repair Procedures: Removal

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Drain the engine oil and then remove the oil filter.

    (Refer to Lubrication System - "ENGINE OIL ")

  3. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

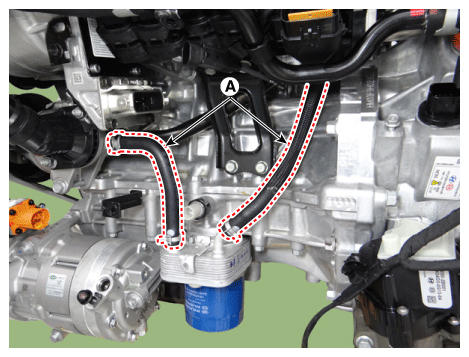

  4. Disconnect the coolant hose (A).
    Fig 1: Disconnecting Coolant Hose
    G12328951Courtesy of KIA MOTORS AMERICA, INC.

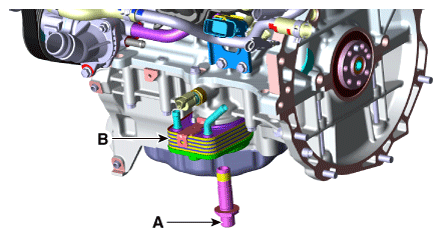

  5. Unfasten the fixing bolt (A) and then remove the oil cooler assembly (B).
    Fig 2: Removing Oil Cooler Assembly
    G12328952Courtesy of KIA MOTORS AMERICA, INC.
