Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear console cover.

    (Refer to Body - "REAR CONSOLE COVER ")

  3. Disconnect the AC inverter outlet switch connector (A).

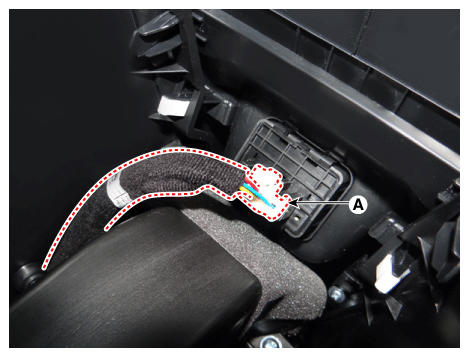

    Fig 1: Locating AC Inverter Outlet Switch Connector
    G12332234Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the AC inverter outlet switch (A) after pushing the mounting hooks.

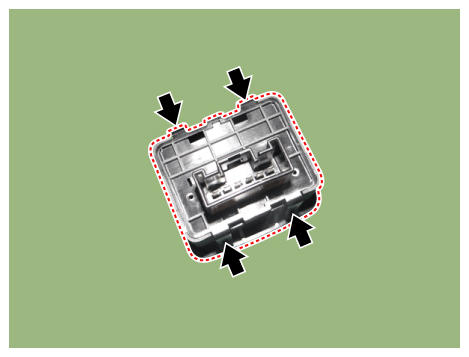

Fig 2: Pushing Mounting Hooks
G12332235Courtesy of KIA MOTORS AMERICA, INC.

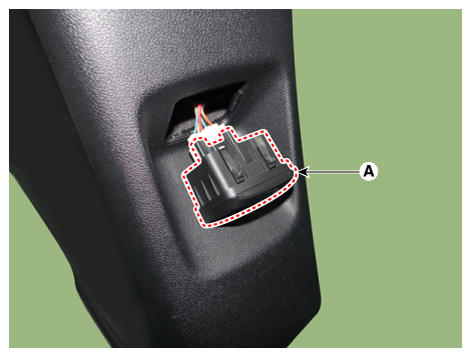

Fig 3: Locating AC Inverter Outlet Switch
G12332236Courtesy of KIA MOTORS AMERICA, INC.
